A10 (Compound 16) is a diketopiperazine‑based ionizable lipid disclosed in WO 2025/217298 A1 (PCT/US2025/023899) developed by NAVA Therapeutics that enables potent, cell‑selective in vivo delivery of mRNA and nucleic acids without targeting ligands. It forms stable, well‑tolerated lipid nanoparticles (LNPs) that preferentially transfect hematopoietic stem cells (HSCs), bone marrow progenitors, lung epithelium, endothelium, and immune cells while minimizing liver off‑target delivery. In both mice and non‑human primates, A10‑containing LNPs drive functional mRNA expression and gene editing in CD34⁺ HSCs at clinically relevant low doses (0.25–1.0 mg/kg), supporting in vivo HSC gene therapy without ex vivo manipulation.

KC‑34 (SPC‑A9) is a novel stereopure, diketopiperazine-based ionizable cationic lipid engineered to overcome traditional liver-restricted delivery, achieving balanced multi-organ mRNA transfection. Upon systemic intravenous administration, its precisely optimized chiral configuration allows the lipid nanoparticles (LNPs) to efficiently cross endothelial barriers and target the bone marrow, offering immense therapeutic potential for in vivo hematopoietic stem cell gene editing. Concurrently, KC-34 mediates robust and long-lasting protein expression in the spleen and lungs with minimal hepatic off-target toxicity. Its stable structure provides excellent biocompatibility and high in vivo tolerance, making it ideal for systemic, multi-dose mRNA therapies.

Lipid 87 is a proprietary ionizable lipid developed by Generation Bio. Used as a key ingredient in stealth LNPs, it greatly prolongs blood circulation time, maintains high nucleic acid encapsulation efficiency and low cytotoxicity, and enables effective liver targeting. Its relevant applications are documented in PCT patent WO2026/080826A1. As a core component (47.5–57.5 mol%) of stealth lipid nanoparticles (LNPs), it works synergistically with steric-stabilizing polymers like DSG-PEG₂₀₀₀-OMe to extend the in vivo blood half-life of LNPs to over 24 hours (compared to merely 30 minutes of conventional LNPs). It achieves an encapsulation efficiency above 95% for mRNA and closed-ended DNA (ceDNA), exhibits low cytotoxicity with an IC₅ value greater than 100 μM, and delivers robust liver-targeting performance, obtaining over 80% hepatocyte transfection at a dosage of 0.5 mpk. In preclinical models of hemophilia B, LNPs formulated with Lipid 87 can restore around 40% of clotting factor IX (FIX) activity for more than seven days.

YHS-12 is an ionizable cationic lipid (pKa = 6.506) that has been used in the generation of lipid nanoparticles (LNPs) for the delivery of siRNA and mRNA in vitro and in vivo.1 LNPs containing YHS-12 and the macrophage targeting peptide CRVLRSGSC and encapsulating mRNA encoding chimeric antigen receptor targeting methicillin-resistant S. aureus (MRSA) and siRNA targeting caspase-11 increase the phagocytosis rate of MRSA in RAW 264.7 macrophages and primary mouse bone marrow-derived macrophages (BMDMs). Intravenous administration of these LNPs decreases blood bacterial burden and increases survival in a model of sepsis using cyclophosphamide-induced immunosuppressed mice.

C14-490 is an ionizable cationic lipid (pKa = 5.94).1 It has been used in the generation of lipid nanoparticles (LNPs) for the delivery of mRNA in vivo.C14-490-containing LNPs accumulate primarily in the fetal mouse liver and, to a lesser extent, in the lungs, intestine, and brain after vitelline vein injection on gestational day 16 (E16).1 CD45-functionalized LNPs containing C14-490 and encapsulating mRNA encoding GFP transfect Jurkat cells, which constitutively express the CD45 receptor (CD45R).C14-490-containing CD45-functionalized LNPs encapsulating Cre mRNA mediate genome modulation in bone marrow hematopoietic stem cells (HSCs) for at least four months after in utero injection in R26mT/mG mice at E13.5.

Lipid 10 is a novel ionizable cationic lipid be used for delivery of therapeutic RNA to the Bone Marrow in Multiple Myeloma Using CD38-Targeted with Lipid 10-LNP.

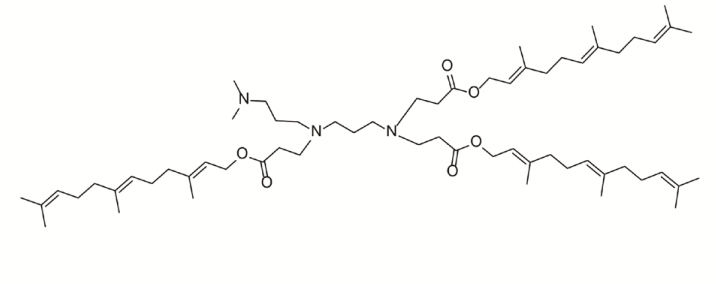

H5T5 is a leading ionizable lipid nanoparticle (LNP) formulation optimized for in vivomRNA delivery, featuring a pKa of 6.51, a size of ~154 nm, and a narrow polydispersity index (PDI) of 0.05. It demonstrated superior in vitromRNA transfection efficiency in primary immune cells, such as bone marrow-derived macrophages. Following intravenous administration, H5T5 exhibits precise organotropism, predominantly targeting the spleen and bone marrow, where it effectively delivers mRNA to a broad spectrum of immune cells, including macrophages, dendritic cells, T cells, B cells, and NK cells. This capability enables its core application: the in vivogeneration of "pan-CAR" immune cells. When loaded with anti-HER2 CAR mRNA, the H5T5-based therapy achieved potent tumor regression and prolonged survival in multiple solid tumor models. Preliminary safety assessments indicated a manageable cytokine profile and no significant organ toxicity, positioning it as a promising platform for in vivocell engineering.

E12CA1A3 is an ionizable cationic lipid (pKa = 6.4) that has been used in the generation of lipid nanoparticles (LNPs) for the delivery of mRNA in vitro and in vivo.1 LNPs containing E12CA1A3 and encapsulating an mRNA reporter induce luciferase reporter expression in mouse bone marrow-derived dendritic cells (BMDCs) and mice. LNPs containing E12CA1A3 are cleared more rapidly from the liver than LNPs containing DLin-MC3-DMA (Item No. 34364) in mice.
